Cage Information
xCage Description
xEach kit contains:

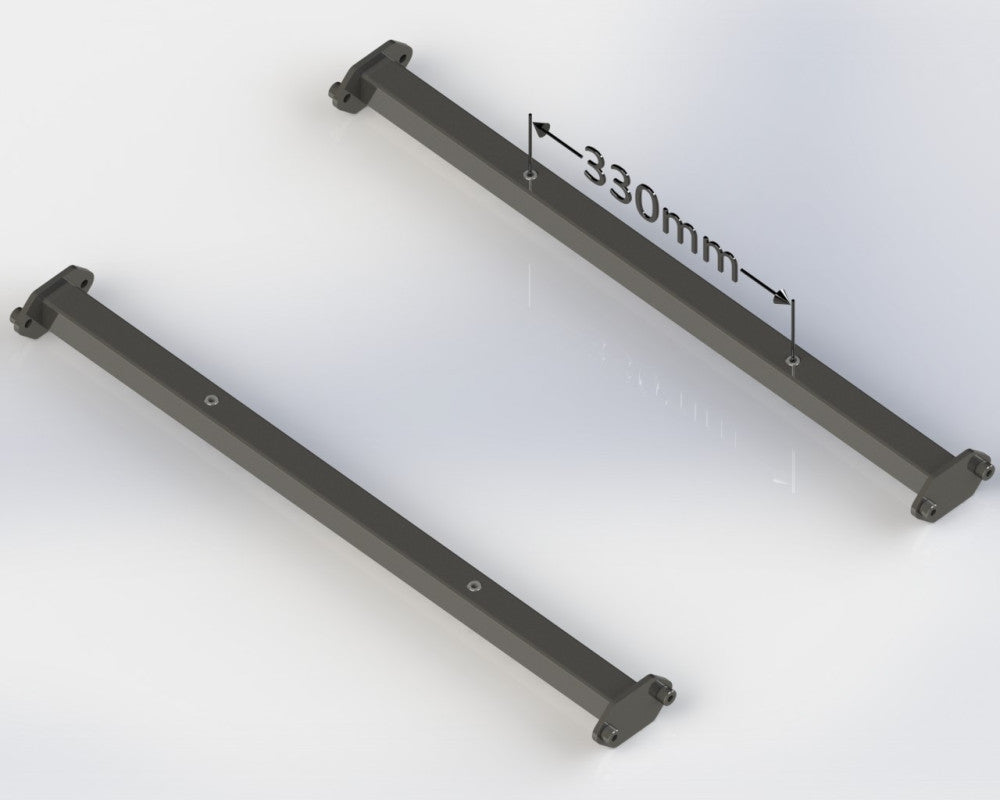

2x Seat Rails of Length 720mm 35mm X 35mm X 2.5mm Box - 25CrM04 as prescribed by the FIA

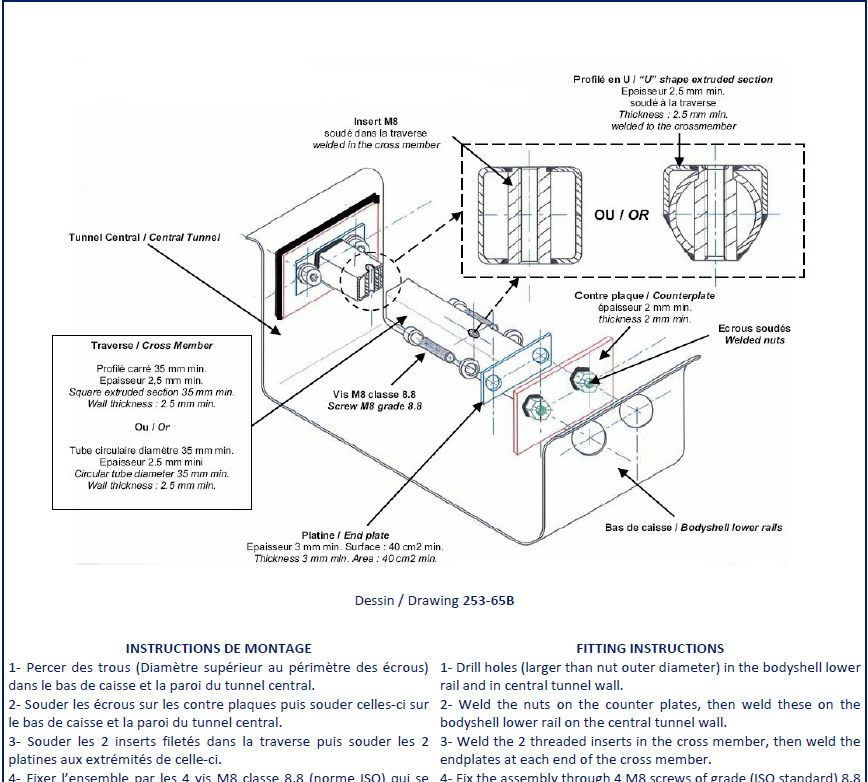

*FIA & MSUK requirements stipulate Square Extruded Box material (NOT WELDED) *Boss positions to 330mm centres - XS
4x M8 Threaded Insets to be Welded into Rails (EN14 Steel)
8x Pre-Drilled End Plates - TO MS UK Thickness of 3mm (CR4)
8x 30mm - M8 Cap Head Bolts (12.9)
8x Weldable M8 nuts
8x M8 Washers
8x M8 Spring Washer
Not to be mistaken for low grade box material
25CrMo4A Continental/European spec, very similar in terms of properties to T45.
Much lower quantities of Manganese, but higher Chrome content.
Almost identical in terms of composition and properties to 4130
Readily weld-able with the correct procedures.
Properties: Yield strength – min. 600 MPa.
Tensile – 700 – 900 MPa.
Roll Cage Certification
xA roll cage design must comply with the MSA/FIA technical regulations published in the MS UK Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.
To compete in any race or rally your roll cage will need to comply with either MSA or FIA regulations. (Effectively, the MSA is governed by the FIA so if a roll cage design complies with FIA regs, then it is also eligible for MSA events). There are some instances where the FIA allows certain design features where the MSA do not (and vice versa).
The certification process generally allows for a lighter roll cage because it is a bespoke design where the diameter and thickness of each tube is optimised to achieve the overall strength required by the FIA/MSA rules.
In order to compete in MSA/FIA events every vehicle, which has a certificated design of roll cage, should have a copy of a valid certificate to present at scrutineering. Custom Cages has certified the majority of popular roll cages. All other roll cages comply with MSA/FIA regulations and receive a Letter of Conformity for competitors to present to scrutineers.
To obtain a certificate for a self-fit roll cage, the installer must complete a Custom Cages weld test.
Custom Cages’ roll cage kits include a weld test sample. Once completed these are returned to the company for load testing. They are subjected to a physical test to assess the actual yield strength of the weld. This ensures that the self-fit roll cages achieve the highest standards of integrity.
Additional samples may be requested.
Certificates will only be issued on completion of a successful test.
Please be aware that there is a charge of £60.00 + VAT for all MS UK / FIA Certificates
Roll Cage Kit Contents
x
Your Roll Cage arrives checked and packed ready to install.
- CNC laser-cut and end-formed tubes
- Footplates & gussets, laser cut and folded
- Weld test sample included – see our Certification Video Guide for more details
- Buildmaster included — every Roll Cage part has a unique sticker ID to help locate the correct part; this is used during checking and packing and is signed off twice
- Important documents – declaration forms and fitting guides included
- Unique ID plaque – do not lose this; the ID plaques are unique to each individual cage kit and must be welded to the cage during installation
- Installed images are available on request
